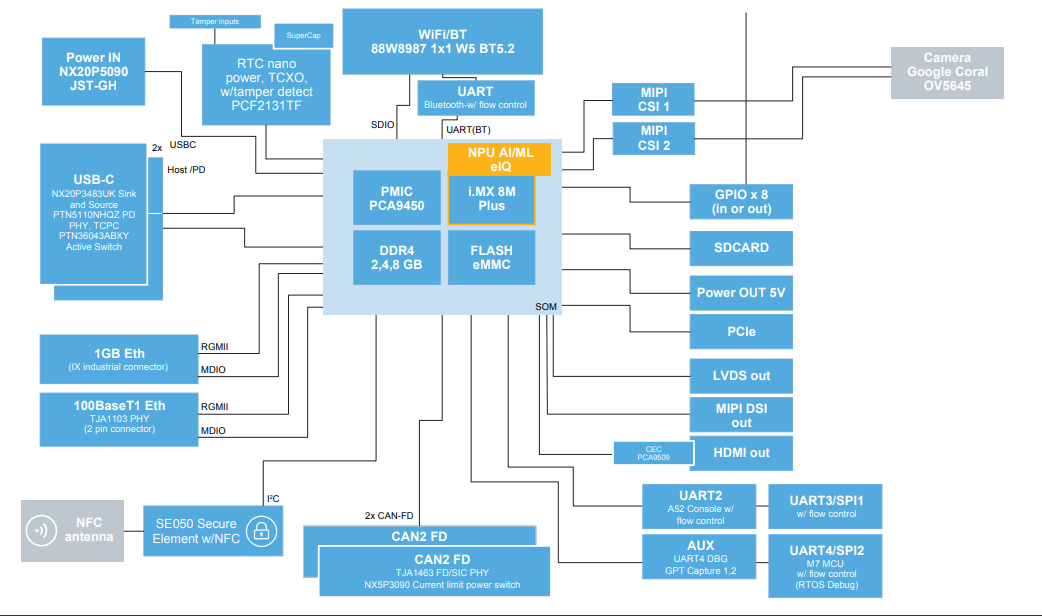

NavQPlus Block Diagram

## Applications The NavQPlus is suitable for many purposes, including generic robots, various vision systems, and AI/ML applications. * Unmanned Aerial Vehicles (UAVs) * Such as multicopters and VTOL (Vertical Take-off and Landing) aircraft * Rovers and other unmanned ground vehicles (UGVs) * Road-going Delivery Vehicles * Robotic Lawn Mowers * Robotic Vacuum Cleaners * Marine Vessels * Camera and Vision Processing Modules * Time-of-Flight (ToF) Cameras * AI/ML Inference * Cellular Gateway * Vision systems in other applications * e.g. a hospital bed monitor that detects if a patient is sitting up or at risk of falling out of bed. Two specific complete developer tool examples are the [NXP HoverGames drone](https://app.gitbook.com/o/-L9GLsni4p7csCR7QCJ8/s/-L9GLtb-Tz_XaKbQu-Al/), and the [NXP Cup car](https://app.gitbook.com/o/-L9GLsni4p7csCR7QCJ8/s/-L9GLtaxrQtBdBRsFIJB/). ## Software The intent of the 8MPNavQ in HoverGames is to enable participants with a solution that allows them to harness common robotics packages and libraries such as: * ROS/ROS2 * OpenCV * GStreamer * pyeIQ * TensorFlow/TFLite * PyTorch * Arm NN * etc. * And more! The 8MPNavQ runs Linux with a package manager, so you should be able to install the packages that you need to complete your projects successfully and efficiently. ## Feedback {% hint style="info" %} We are making a continuous effort to improve this GitBook, some pages and sections may still be a work in progress. Your input and feedback is very welcome. You may provide feedback in our [Discord channel](https://discord.com/channels/1014291298812960913/1027691375770218638) (to access the channel you must first [join the Hackster.io Discord server](https://discord.gg/g6aSSak9NV)). Alternatively, you can open an issue or pull request to the [GitHub repository](https://github.com/NXPHoverGames/GitBook-NavQPlus) that mirrors this GitBook. {% endhint %}
