# T-Arm Insertion to Bottom Chassis

## Video

{% embed url="https://www.youtube.com/watch?index=2&list=PLPtvbG7RC0Ti-LQ3VVHAOeb-btZVdt6pv&v=wevUcje1ZkI" %}

## Bill of materials

{% embed url="https://a360.co/3n27CGv" %}

## Procedure

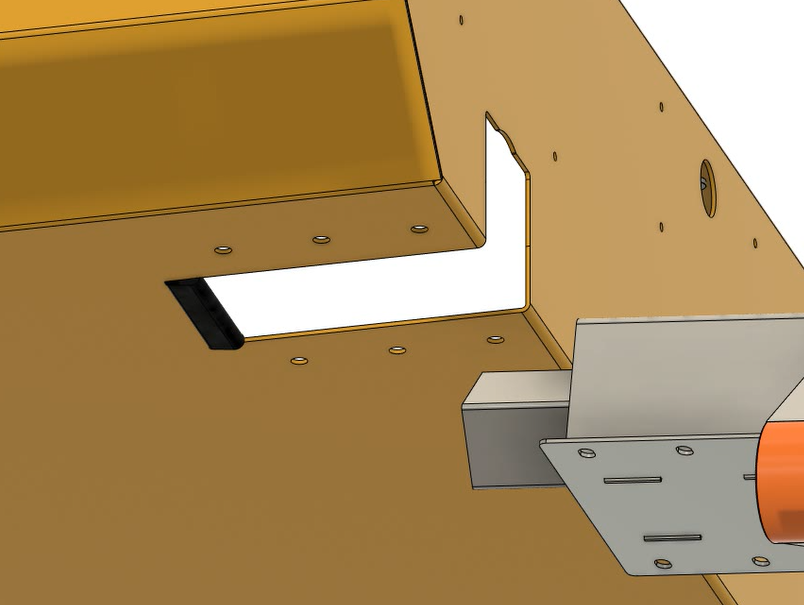

1.  Insert the rubber edge trim into the inner edge of the opening in the Bottom Chassis.\


    <figure><img src="https://4122839187-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVqrg7vhgChap4mjwTvH6%2Fuploads%2FfoLEt8AxPoVrI7jKXSp7%2Fimage.png?alt=media&#x26;token=5b210bfb-cda1-47ce-afe5-defca61cb12f" alt=""><figcaption><p>The addition of the rubber trim ensures a tight fit when the torsion box is inserted.</p></figcaption></figure>
2.  Angle the Suspension Arm at a 45°'ish angle and insert the exposed portion of the axle first, ensuring it sits right above the rubber trim as so:\


    <figure><img src="https://4122839187-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVqrg7vhgChap4mjwTvH6%2Fuploads%2FWpNzynswsMbHLZIeib4r%2Fimage.png?alt=media&#x26;token=15c765cf-7269-465c-8bf4-1444502fc371" alt=""><figcaption></figcaption></figure>
3.  Pivoting on the rubber trim, turn the suspension arm to a straight angle while pushing inwards.\


    <figure><img src="https://4122839187-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVqrg7vhgChap4mjwTvH6%2Fuploads%2F47g3hlZrh8ZsSQK2qhju%2Fimage.png?alt=media&#x26;token=617d4573-24a9-4439-8bef-bc1c80304706" alt=""><figcaption><p>Detail showing the suspension arm in the correct position before adding the fasteners</p></figcaption></figure>
4.  Once the suspension arm is in place, fix it using the included six M5-0.8x10 screws and their respective locknuts just as shown in the video.\


    <figure><img src="https://4122839187-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVqrg7vhgChap4mjwTvH6%2Fuploads%2Fi6SNwP7xVruwQgUJVgDE%2Fimage.png?alt=media&#x26;token=63abda09-3f30-4ba8-a4d8-4e178302a5c5" alt=""><figcaption><p>Detail showing the six M5 screws fastened in place.</p></figcaption></figure>
5.  Repeat the above steps with the remaining suspension arms.



## Assembly notes

{% hint style="warning" %}
NOTE that you will need to leave at least ONE Torsion arm assembly temporarily disconnected in order to get the 220-001 cross braces in place. This is needed, as the opening in the chassis is used to angle the cross braces into place.&#x20;
{% endhint %}
